Solderability testing device type LPK
View Dr.-Ing. Georg Wazau Mess- + Prüfsysteme GmbH on TEKEN44The device tests the solderability of metals under DIN EN 60068-2-20. The device has a lifting unit which allows a defined submerging and emerging of specimen with submerging speeds from 0,5 to 1001 mm/s. The lifting unit has a maximal lifting height of 25 mm. The device is works with a quartz controlled submerging duration of 0 to 10 s. The solder bath is of type ZW 104 TE. The bath has a capacity of 3700 g or approx.400 ml. The dipping speed and the dwell time in the solder bath are set and controlled via the software. The temperature in the solder bath can be adjusted via a PID temperature controller in the range from room temperature to 450 °C. The unit is provided with an enclosure, the door of which is equipped with a safety switching hinge.
TEKEN44 Similar Products
Google Lens Search · visually similar products
The TEKEN44 product image was analyzed with Google Lens via the TEKEN44 MCP server to find 20 visually similar products from across the web.
Solderability testing device type LPK – Wazau
Sorotec Online-Shop - Compact-Line assembled

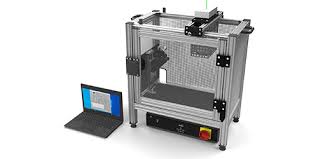

Contact heat testing device CHD DIN EN ISO 12127-1 – Wazau
