CXF Series

Name: CXF Series
Brand: Vinco Valves
Availability: InStock
Rating: 4.5 (1 reviews)

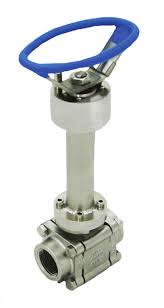

The CXF Series is a cryogenic floating ball valve designed for use in extreme temperatures as low as -196ºC, making it ideal for LNG, LPG, and other applications. It features an advanced unidirectional design with an upstream relief hole to release overpressure safely. The valve is equipped with a rib and groove, fool-proof system to ensure proper installation and operation of the safety feature, and an expansion chamber to create a barrier between the liquefied gas and the packing, enhancing the sealing system’s performance. The CXF Series is available with welding connections, making it the perfect solution for compact and permanent systems that require high reliability and safety.

Applicable Standards

ISO 5211
Industrial valves — Part-turn actuator attachmen...
API 598
Valve Inspection and Testing
EN 12266-1
Industrial valves - Testing of metallic valves - Part 1: Pressure tests, test procedures and acceptance criteria - Mandatory requirements
ASME B16.34
Valves--Flanged, Threaded, and Welding End...
ISO 5208
Industrial valves — Pressure testing of metallic...
ISO 17292
Metal ball valves for petroleum, petrochemical and allied industries
ANSI/ASME B16.34
Valves — Flanged, Threaded, and Welding End
BS 6364
Specification for valves for cryogenic service
