Standard Burner Valve (OV1)
Usage Area : In furnaces • Used Gases : LPG - Natural Gas • Working Lifetime : 40.000 Cycle ( 0.2 Nm ) • Full Flow Rate : 0.55 m³/h • Group : 1 • Nominal Diameter : DN8 • Gas Family : 1,2,3 • Control Of Class : A • Directive : 2016/426/EU (GAR) • CE certified • Relevant Standard : EN 1106 • Maximum Working Pressure : 65 mbar • Maximum Working Temperature : 0 - 130°C • Inlet Connection ( Screw ) : M8x0.75 - NPT 1/8 • Inlet Connection Alternatives ( Flange ) : Minimum Ø10 - Maximum Ø18 • Outlet Connection Alternatives : M10x1, M12x1, M13x1, G1/4" or Injector • Spindle Diameter : Ø6, Ø7 • Flow rate can be adjusted according to customer demand.(Pılot and injector diameter)
TEKEN44 Similar Products
Google Lens Search · visually similar products
The TEKEN44 product image was analyzed with Google Lens via the TEKEN44 MCP server to find 20 visually similar products from across the web.

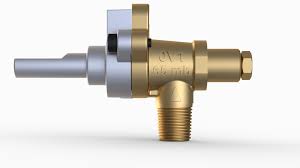

Standart Ocak Valfi (OV1)
