Chillers and heat pumps - Dissipation with air

V-IPER

by Galletti S.p.A.

View Galletti S.p.A. on TEKEN44

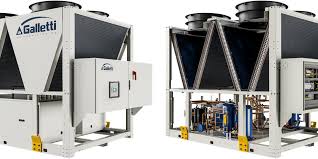

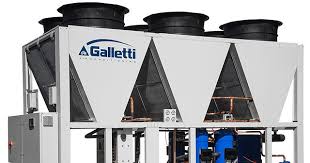

The range consists of 20 air-water models available as chiller and heat pump, with cooling capacities from 50 to 380 kW. The range’s main strongpoint is its high efficiency, not only as time efficiency (Class A Eurovent in chiller and heat pump mode) but especially as seasonal efficiency, aiming to permanently reduce annual energy consumption. In order to increase the efficiency at partial loads, much of the range is comprised of trio solutions (3 compressors on a circuit); furthermore, Viper employs components and adjustment logic that make it possible to manage the water-side flow rate modulation. The range allows high configurability from an acoustic point of view, having a wide range of accessories designed to reduce noise emissions. The advanced control, always present in the whole range, allows a continuous monitoring of the operating parameters, advanced adjustment logics, and connectivity. The modular structure with V configuration condensing coils is designed to optimize air-side heat exchange, to ensure structural strength with a reduced footprint, and to maintain maximum accessibility to the basic components.
