Champion Pneumatic

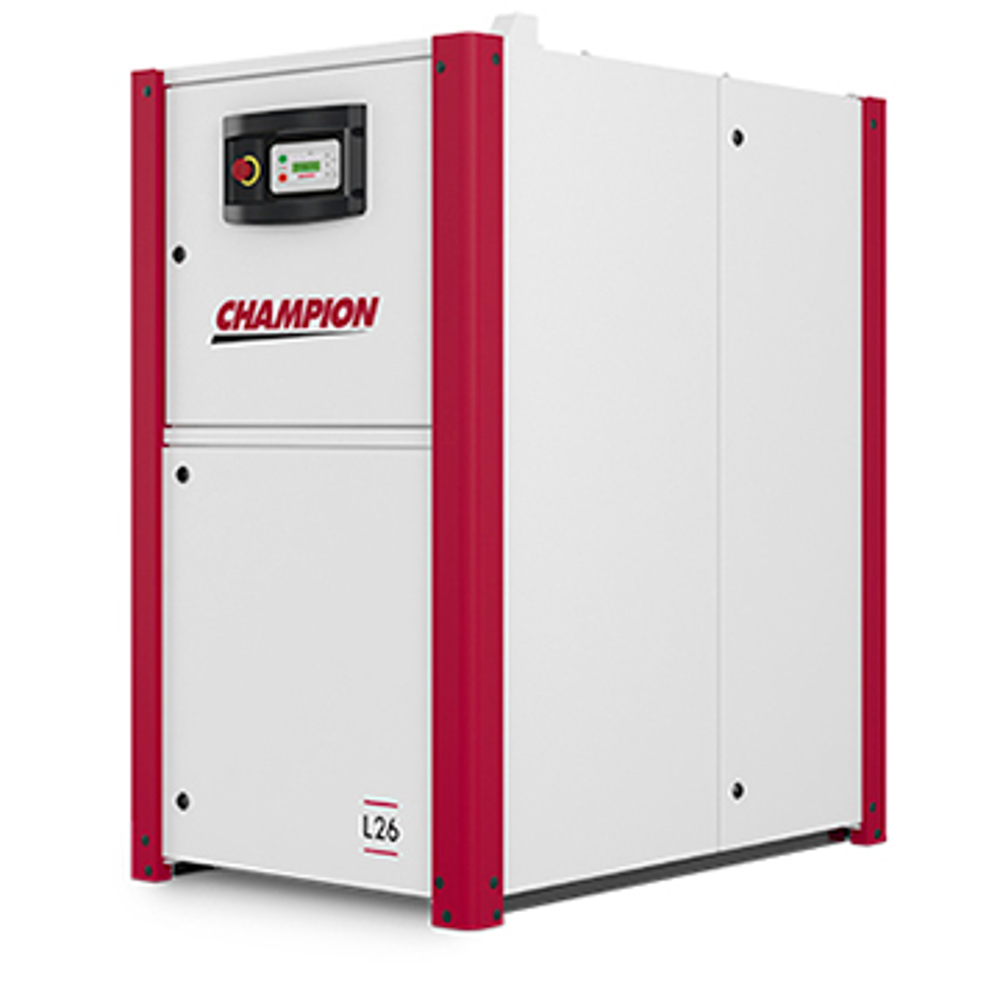

Oil Lubricated single stage rotary screw technology 4-29 kW (5-40HP) Champion's L-Series line of fixed speed compressors combine simplicity with cutting edge design resulting in a compressor that delivers superior performance with unprecedented serviceability.

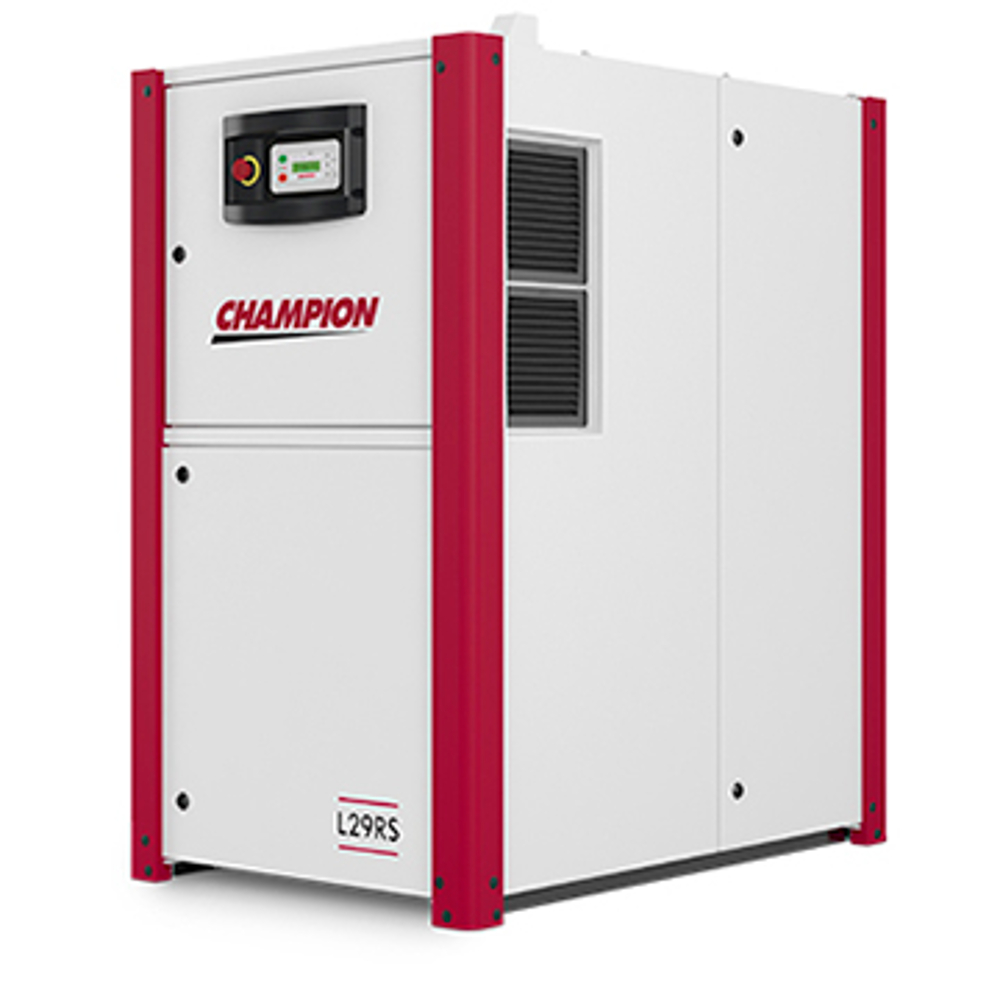

Oil Lubricated single stage, variable-speed rotary screw technology 7-29 kW (10-40HP) Champion's LRS Series variable speed compressors can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure.

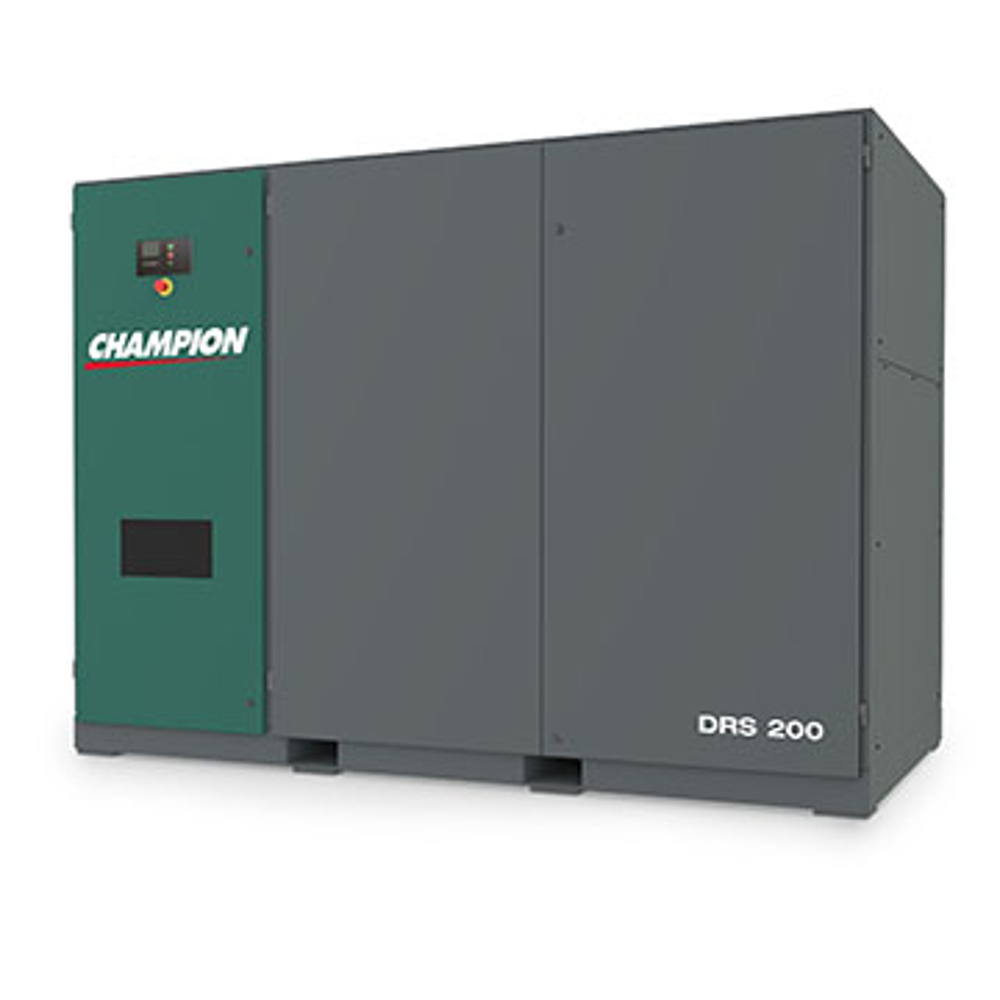

The Champion DRS Series offers variable speed compressors that are designed with energy efficient inverter drives and motor combinations. These oil-lubricated, rotary screw compressors are ideal for environments where air demand fluctuates and energy savings are desired.

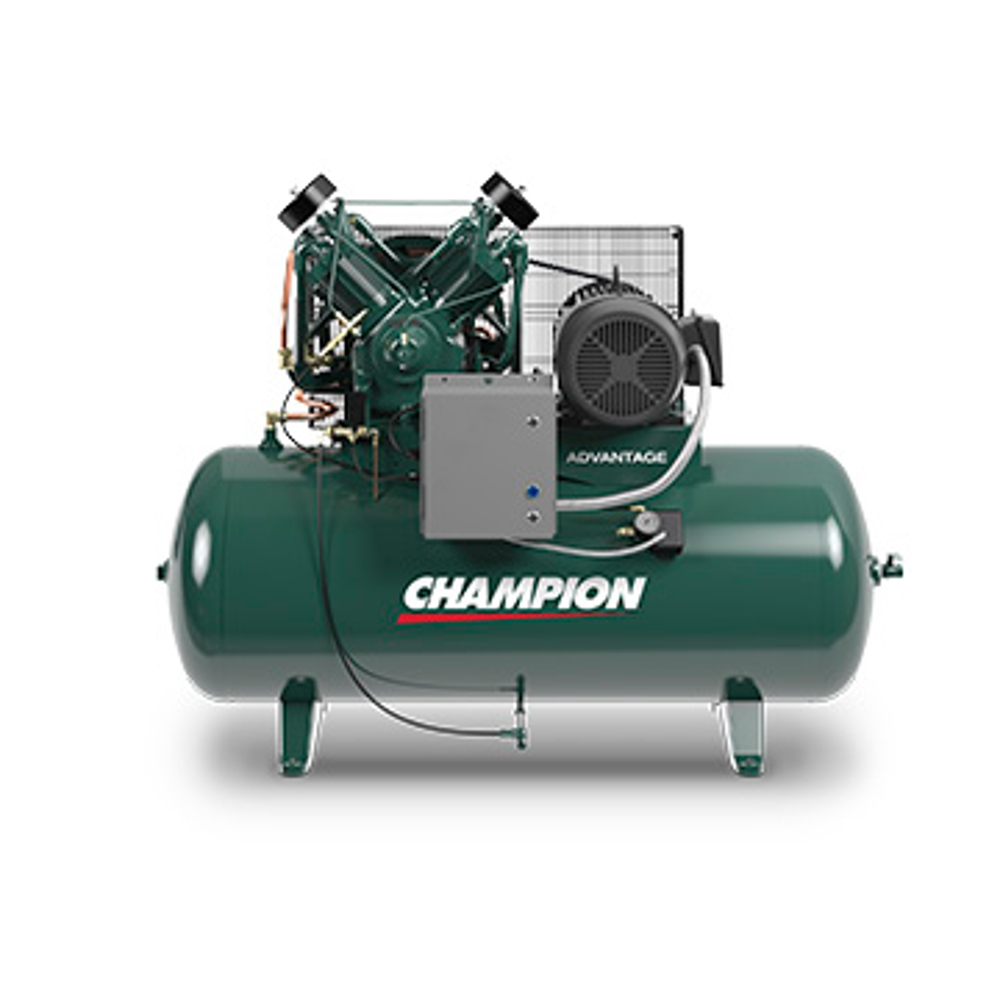

Two Stage, Pressure Lubricated (3-30 HP) Reciprocating Air Compressor Champion PL-Series pressure lubricated compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the PL-Series compressors the solution to your application. They deliver high performance, long life and tremendous value. Champion compressors are the proven choice. Specifications and Features 3 - 30 hp Up to 250 psig 9.7 - 202 acfm at 175 psig on Electric Driven units Tank or Base Mounted, Simplex, Duplex and Engine Driven Models Two-Stage pressure lubricated pumps Loadless auto stop/start 3-year Pump Warranty and 1-year Package Warranty Factory filled with AEON lubricant

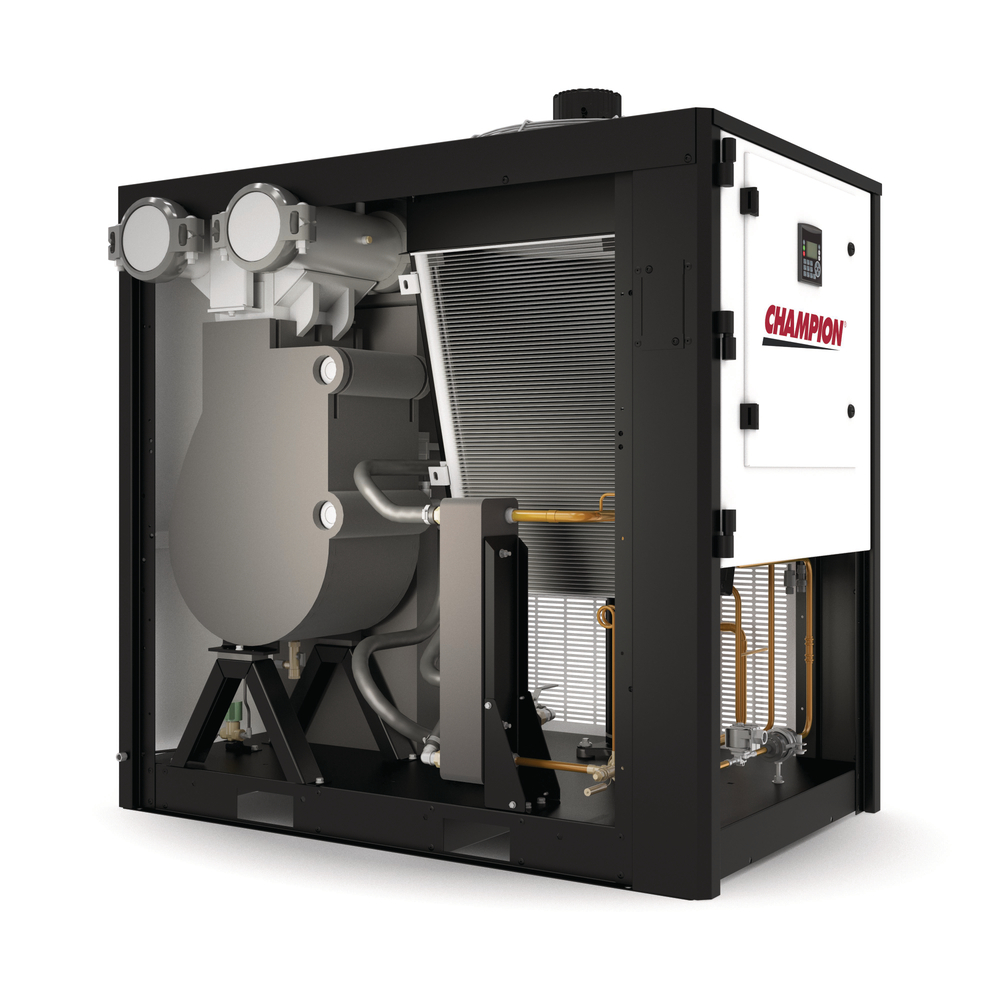

Cycling Refrigerated Dryer Series The Champion XCCYA Series is a genuine cycling dryer, incorporating innovative features that make it not only the most reliable, but the most energy efficient dryer in its class. An advanced cycling dryer, the XCCYA Series provides significant savings because it does not waste energy costs through continuous operation of its refrigeration system, as do traditional non-cycling dryers. Each component has been designed to provide durability plus maximum energy efficiency. In addition, this cycling dryer utilizes R513A refrigerant, achieving an 85% reduction in Global Warming Potential (GWP) for increased sustainability. The net effect is a GWP of less than 700.

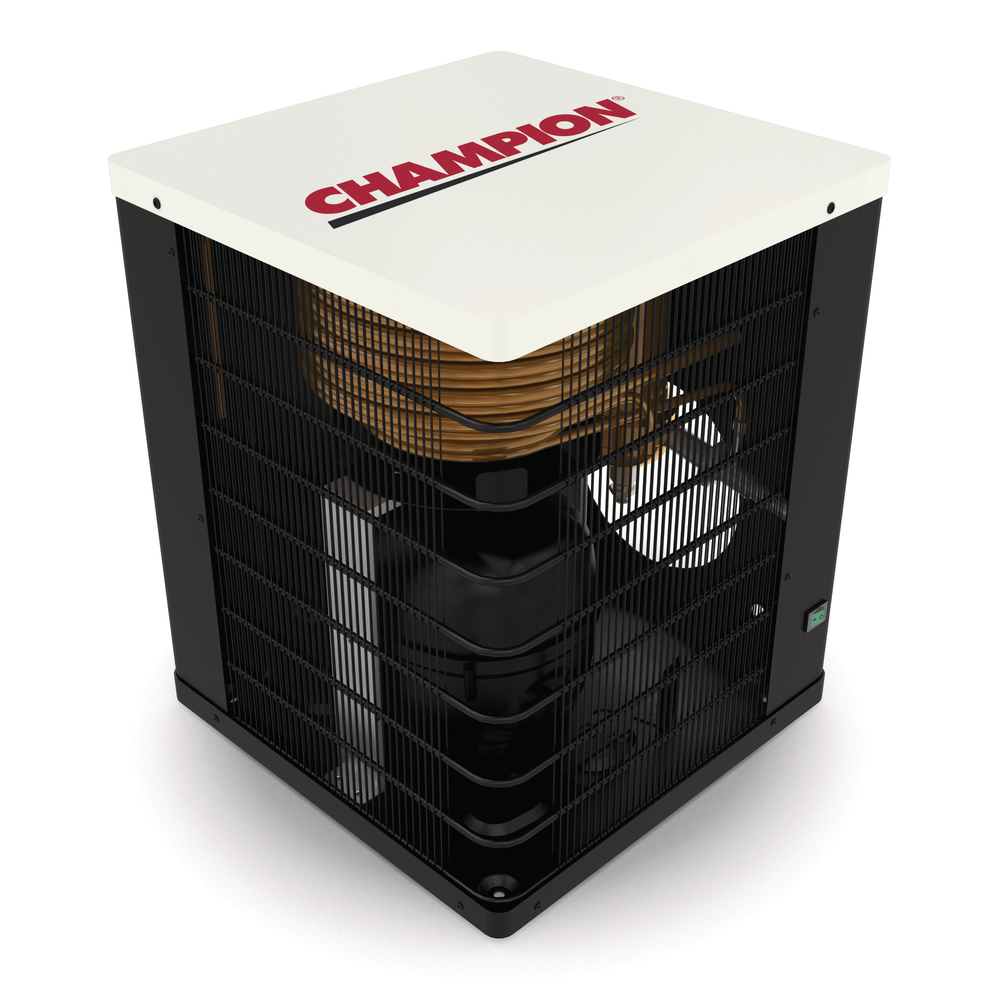

The CGDA Series refrigerated air dryers deliver reliable ISO 8573-1 Air Quality, Class 4 to 5 pressure dew point, and uses eco-friendly R513A refrigerant. Featuring durable aluminum heat exchangers and low pressure drop for energy efficiency, the dryers come in models ranging from 7 to 50 scfm. Certified to UL and CSA safety standards, they ensure performance, versatility, and compliance with environmental regulations.

Our dryers offer multiple design features to ensure a constant dew point at all load levels, and to deliver continuous dry-air performance that satisfies ISO 7183 and CAGI ADF100 industry standards. The dryer's full function control with enhanced control parameters, diagnostics and alarms is more sophisticated and powerful than similarly sized competitive products. We also test every unit to ensure leak-free operation and compliance with operating specifications.
