AFFRI

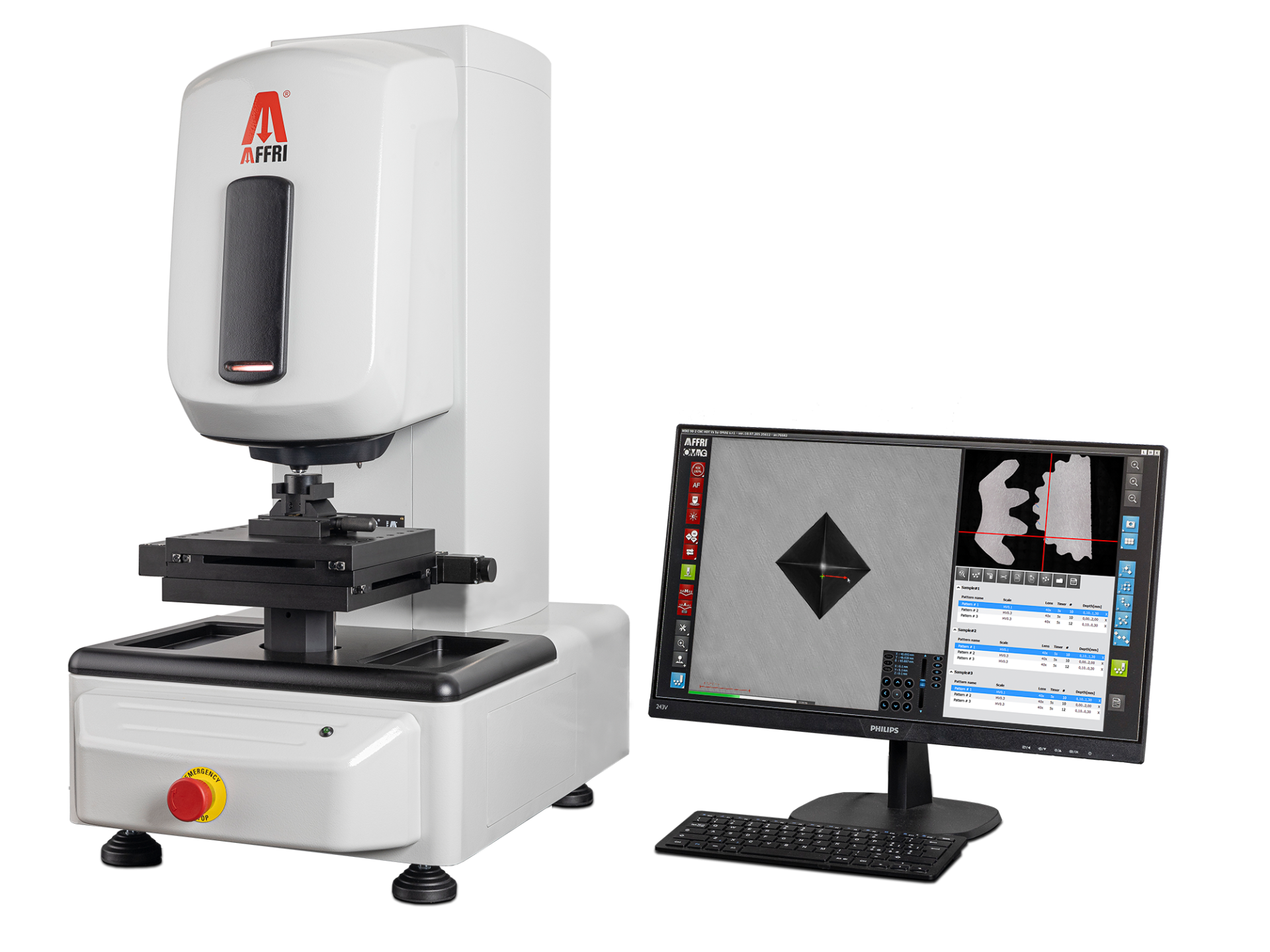

Micro hardness tester WIKI 90 CNC is a motorized and automatic system for Vickers, Knoop, or Brinell hardness testing with load cell technology, a high definition camera for indent auto-reading, and a motorized turret with 6 positions (4 steps for lens and 2 steps for indenters). Fully conforms to ASTM and ISO hardness standards. One button measurement: Click the START button: the hardness tester indents the sample, moves to the camera, measures, and generates data dynamically. Semi-automatic case hardness depth (CHD) can be easily done thanks to the 1µm step XY table connected to the PC and the step-by-step assisted procedure. For micro-macro Vickers and CHD case depth tests on all metals: iron, steel, tempered steel, cast iron, brass, aluminum, copper, and metal alloys. Heat treatment, hardening, nitriding, cementation, and hard facing. Knoop test on ceramic and glass materials.

ATI MARS is Motorized and Automatic Rockwell and Superficial Rockwell Hardness Tester, engineered to meet the rigorous standards set forth by ASTM E18, ISO 6508, and ISO 2039-2. This advanced testing instrument employs a high-precision load cell and Closed-Loop electronic control with a 1 KHz sampling rate, ensuring optimal accuracy and reliability. The automatic start test cycle is initiated with a single input command, streamlining the testing process and enhancing efficiency. ATI MARS is designed to accurately measure the hardness of ferrous, non-ferrous metals, and non-metal materials. Engineered for high accuracy, this tester meets the needs of manufacturers and engineers who require precise hardness measurements in critical applications.

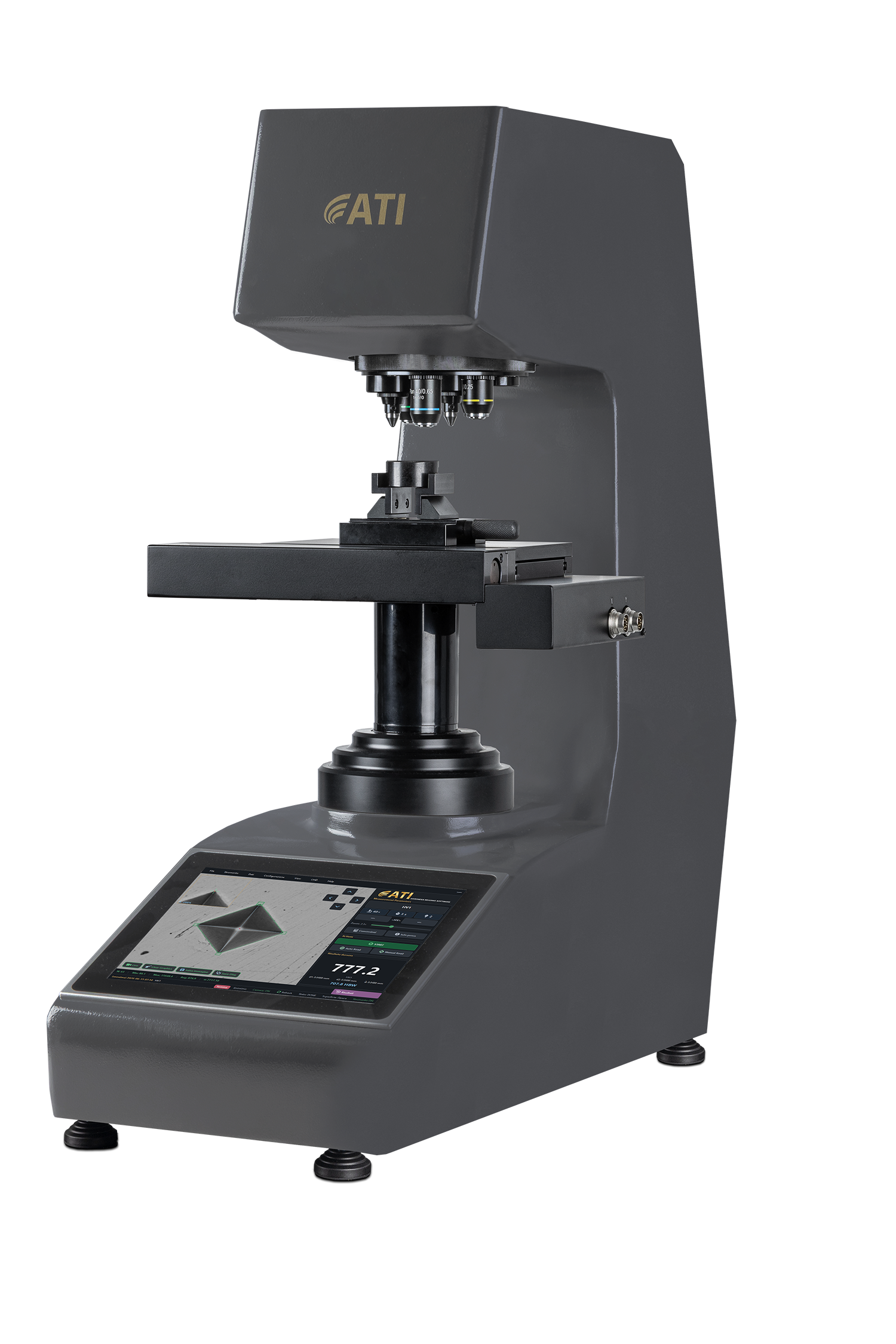

ATI V-AUTO is an Automatic Vickers, micro Vickers and Knoop Hardness Tester, engineered to meet the rigorous standards set forth by ASTM E92 and E384. This advanced testing instrument employs a high-precision load cell and Closed-Loop electronic control with a 1 KHz sampling rate, ensuring optimal accuracy and reliability. One START button to get start the entire test cycle with display of the results. Fully automatic test cycle with automatic succession of each phase without interruption. Direct image of indentation with manual or automatic measuring on-board. Turret at 5 positions with automatic selection of indenters and objective lens, depending on the selected scale. ATI V-AUTO is equipped with a motorized X-Y-Z table and auto-focus for multi indentation cycle.

Automatic Brinell hardness tester ATI B3000-2 is automatic Brinell hardness tester for Brinell hardness testing complaint with ASTM E10-23 and ISO 6506 standards. ATI B3000-2 hardness tester is extremely easy to use: just choose the correct hardness scale, bring the sample to the test area using the manual elevating screw and press the CALCULATE button. The measurement cycle starts automatically. The operator will have to type the measured indentation value on the keyboard and the software will calculate the corresponding hardness value and show it on the display.

Motorized and Automatic Universal Hardness Tester, complies with ISO 6506, ISO 6507, ISO 6508, ISO 2039-2 and ASTM E10-23, ASTM E103-24, ASTM E384-22, ASTM E92, ASTM E18, ASTM E110 standards. This advanced testing instrument employs a high-precision load cell and Closed-Loop electronic control with a 1 KHz sampling rate, ensuring optimal accuracy and reliability. ATI HVBR is a cutting-edge universal hardness tester designed to provide precise hardness measurements of materials through multiple testing methods, including Brinell, Rockwell, and Vickers. Utilizing electronic load cell control, ATI HVBR enhances the accuracy and reliability of measurements. The hardness tester features a large display screen, offering clear visibility and intuitive operation, integrating optical, mechanical, and electrical technologies. This versatile instrument supports testing forces ranging from 1 kg to 250 kg.
